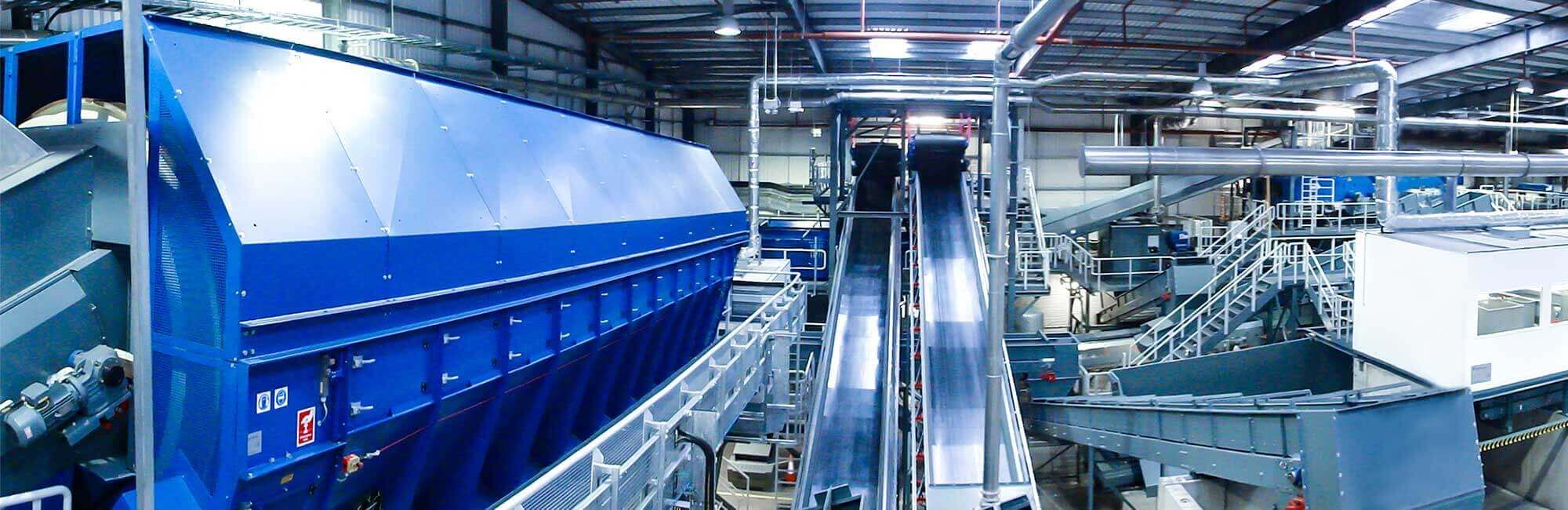

Stationary Screen Drum BRT HARTNER SD
Trommel Screen in Stationary Design for Material Screening and Separation into Different Output Fractions
Screening Drums separate the material into different sized fractions. Up to four grain fractions can be produced this way. Suitable input material is for example household waste, bio waste, compost, refuse-derived fuel, commercial waste or construction waste. The type of waste, the requested throughput rate and the required particle size define the size and dimension of the stationary trommel screen.
Technical Data
| Working Data | SD 21 | SD 25 | SD 30 |
| Drum diameter | 2,100 mm | 2,450 mm | 2,950 mm |
| Length of sieving surface | 6,000 – 8,000 mm | 6,000 – 12,000 mm | 6,000 – 12,000 mm |
| Total length of drum body | 8,000 mm – 10,000 mm | 8,000 mm – 14,000 mm | 8,000 mm – 14,000 mm |
| Total sieving area | 40 – 53 m³ | 46 – 92 m³ | 65 – 111 m³ |
| Thickness of screen plates | 8, 10 , 12 mm | 8, 12, 15 mm | 8, 12, 15 mm |
| Drum inclination | 4° | 4° | 4° |
| Thickness of rings | 35 mm | 35 mm | 35 mm |
| Width of rings | 150 oder 280 mm | 280 oder 410 mm | 280 oder 410 mm |
| Number of radial wheels | 4 or 8 | 8 or 12 | 8 or 12 |
| Number of radial wheels | 1-ford / 2-ford | 2-ford / 3-ford | 2-ford / 3-ford |
| Drive | 1 x 11 KW or 1 x 15 KW | 1 x 15 KW or 2 x 15 KW | 1 x 15 KW or 2 x 15 KW |
| Base frame pro l height | 300 mm | 300 or 360 mm | 300 or 360 mm |
| Total weight | 14,8 – 16,6 t | 20,8 – 28,0 t | 26,5 – 33,7 t |
| *Throughput can vary depending on the material, material properties, moisture and composition. All values are approximate. | |||
