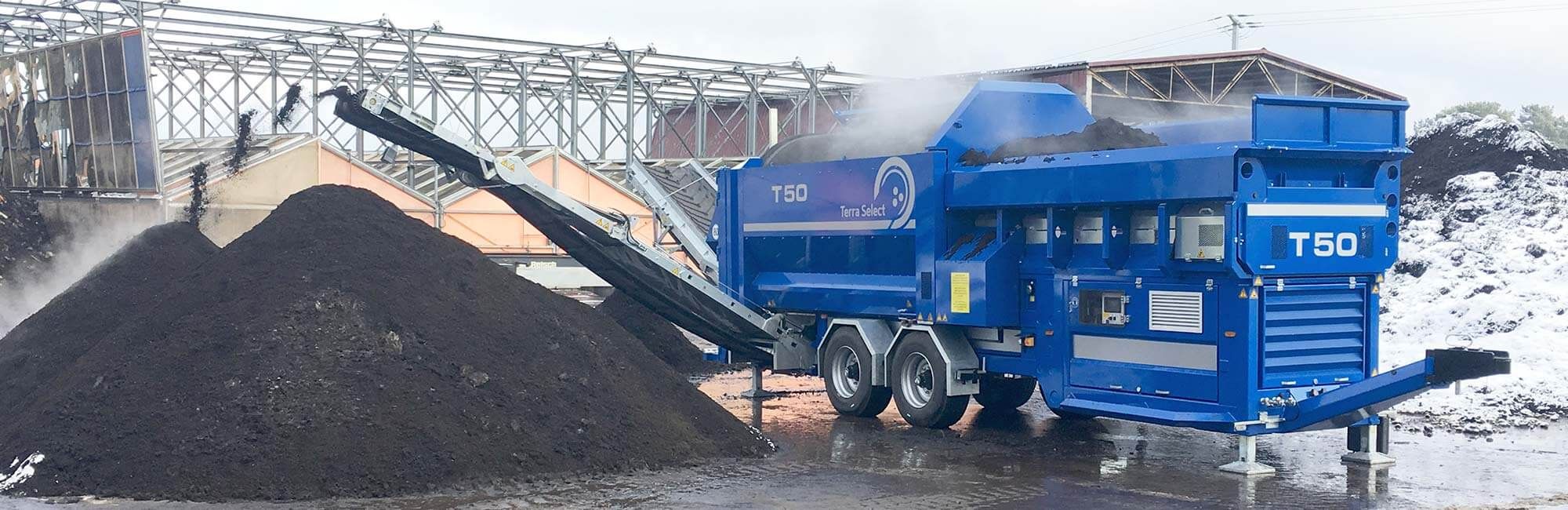

Terra Select T 50 Mobile Trommel Screen
Outstanding Screening Performance for Virtually all Areas of Application
Due to its high level of technical equipment, the T 50 can be used for virtually all types of materials such as compost, soil, refuse, wood or metal> Terra Select trommel screen allows you easily separate fine and oversized particles.
Technical Data
| Trommel Length | 4,200 mm |
| Trommel diameter | 2,000 mm |
| Effective screening area | 25 m² |
| Screening output max. | 150 m³/h |
| Engine | Diesel motor 55 KW |
| Fine grain belt length | 6,700 mm |
| Fine grain belt width | 1,000 mm |
| Oversize grain belt length | 4,900 mm |
| Oversize grain belt width | 1,000 mm |
| Hopper | > 6 m³ |
