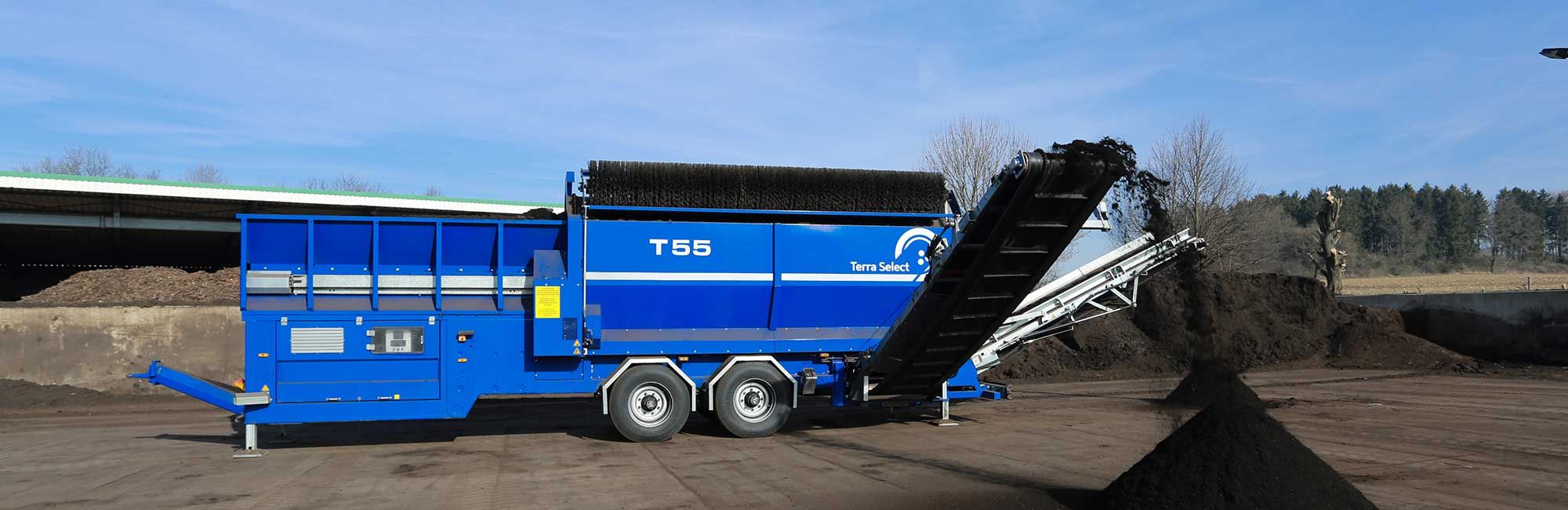

Terra Select T 55 Mobile Trommel Screen
Standardised Machine for Two Fraction Screening
The T 55 has been developed to fulfil the long-expressed wishes of customers for a screening machine positioned between the standard T 50 and T 60 models. The mobile trommel screen not only fills the gap between the two screening classes but, just like the other Terra Select trommel screen models, it also has an impressive combination of innovative technical solutions and flexible operation.
Technical Data
| Trommel Length | 5,500 mm |
| Trommel diameter | 2,000 mm |
| Effective screening area | 30 m² |
| Screening output max. | 170 m³/h |
| Engine | Diesel motor 55 KW |
| Fine grain belt length | 7,200 mm |
| Fine grain belt width | 1,000 mm |
| Oversize grain belt length | 5,000 mm |
| Oversize grain belt width | 1,000 mm |
| Hopper | > 6 m³ |
